Introduction

In this example, we test out symEBcovMF on a null dataset – the data matrix \(X\) is generated from normal noise and then \(S = XX'\) is formed.

Example

library(ebnm)
library(pheatmap)
library(ggplot2)
source('code/symebcovmf_functions.R')
source('code/visualization_functions.R')

Data Generation

sim_null_data <- function(args) {
  set.seed(args$seed)

  Y <- matrix(rnorm(args$n * args$p, sd = args$indiv_sd), nrow = n)
  YYt <- (1/args$p)*tcrossprod(Y)

  return(list(Y = Y, YYt = YYt))
}
n <- 200
p <- 1000
indiv_sd <- 1
seed <- 1
sim_args = list(n = n, p = p, indiv_sd = indiv_sd, seed = seed)
sim_data <- sim_null_data(sim_args)

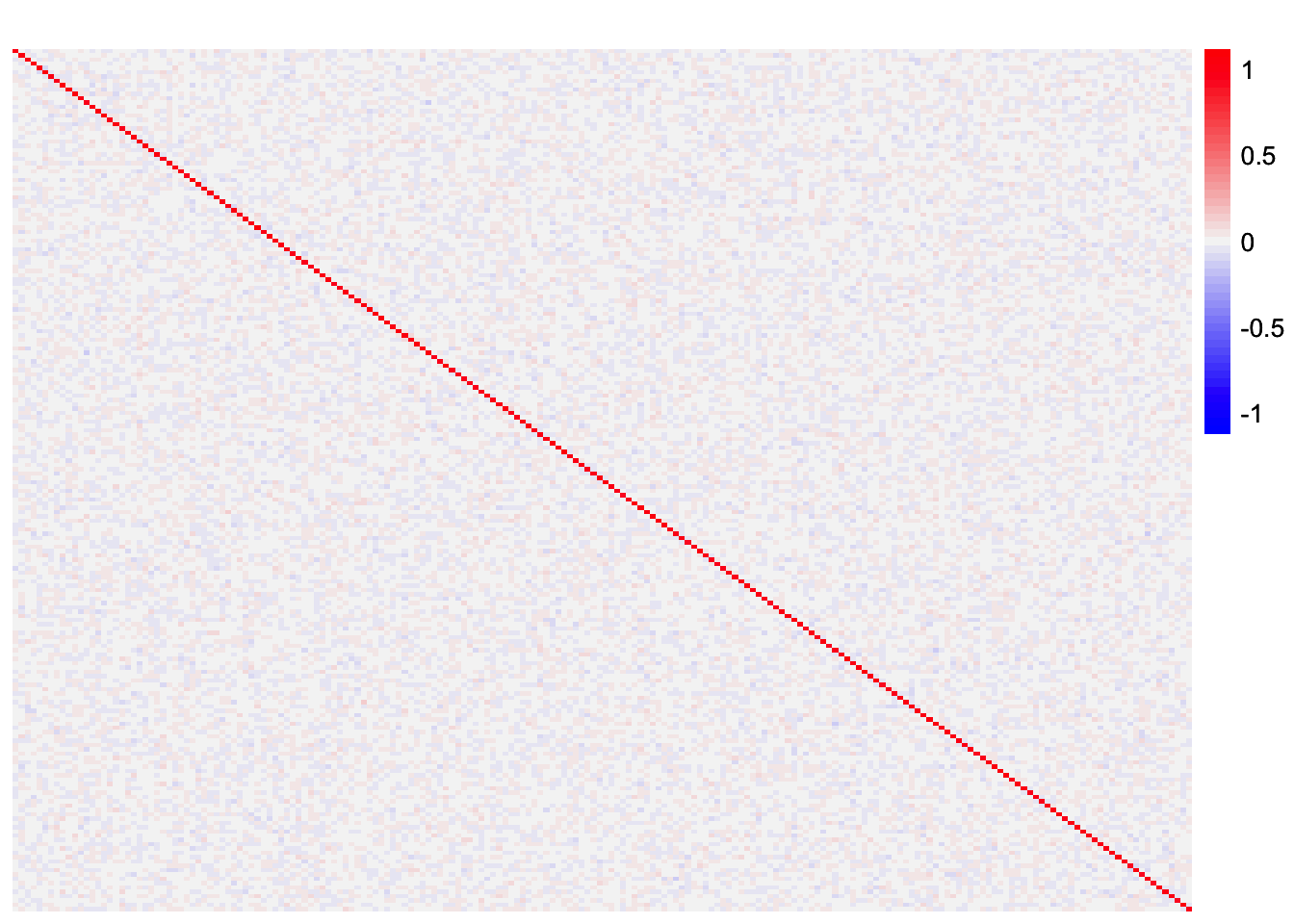

This is a heatmap of the scaled Gram matrix:

plot_heatmap(sim_data$YYt, colors_range = c('blue','gray96','red'), brks = seq(-max(abs(sim_data$YYt)), max(abs(sim_data$YYt)), length.out = 50))

symEBcovMF

symebcovmf_fit <- sym_ebcovmf_fit(S = sim_data$YYt, ebnm_fn = ebnm_point_exponential, K = 1, maxiter = 100, rank_one_tol = 10^(-8), tol = 10^(-8), refit_lam = FALSE)

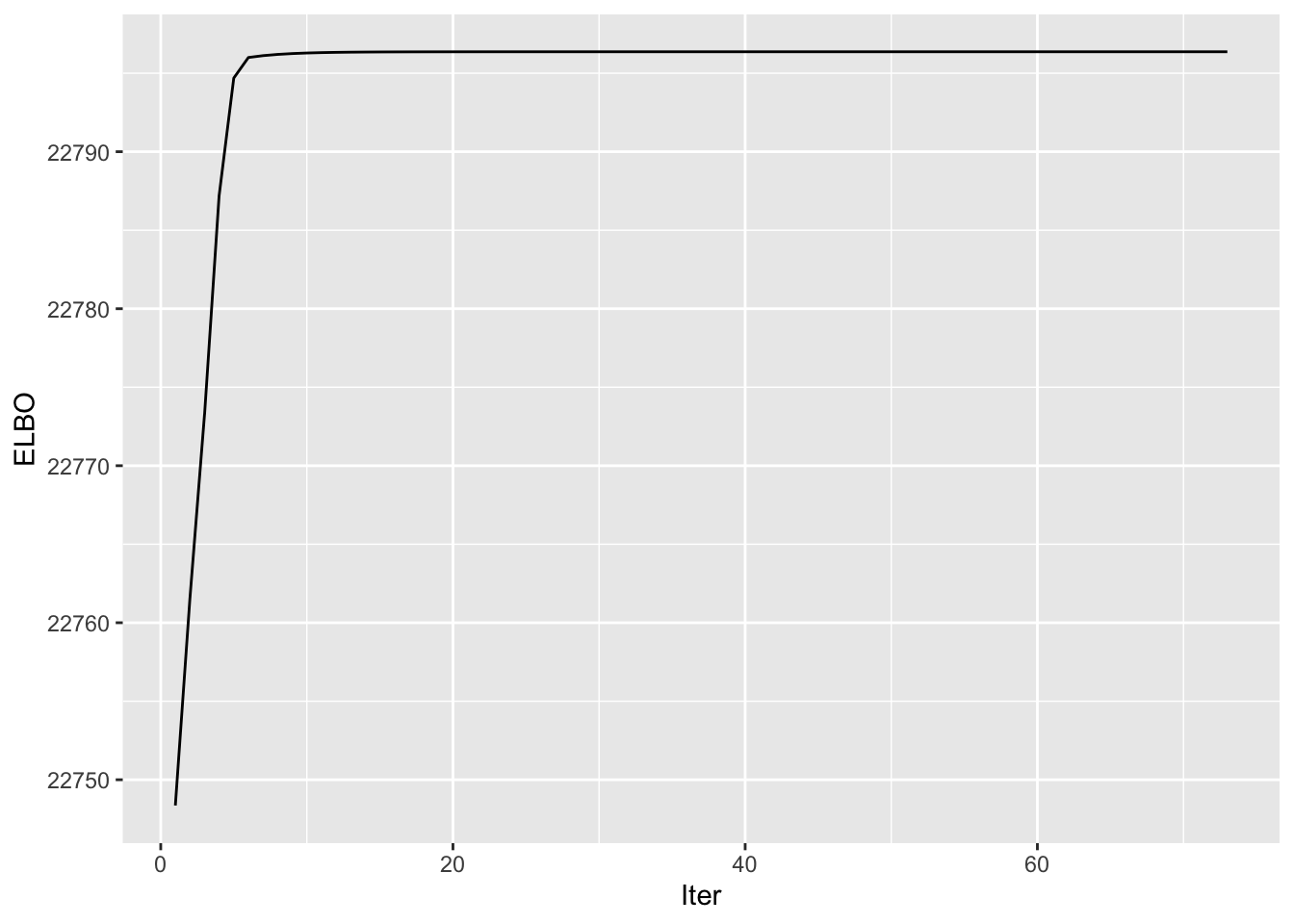

Progression of ELBO

symebcovmf_full_elbo_vec <- symebcovmf_fit$vec_elbo_full[!(symebcovmf_fit$vec_elbo_full %in% c(1:length(symebcovmf_fit$vec_elbo_K)))]
ggplot() + geom_line(data = NULL, aes(x = 1:length(symebcovmf_full_elbo_vec), y = symebcovmf_full_elbo_vec)) + xlab('Iter') + ylab('ELBO')

Visualization of Estimate

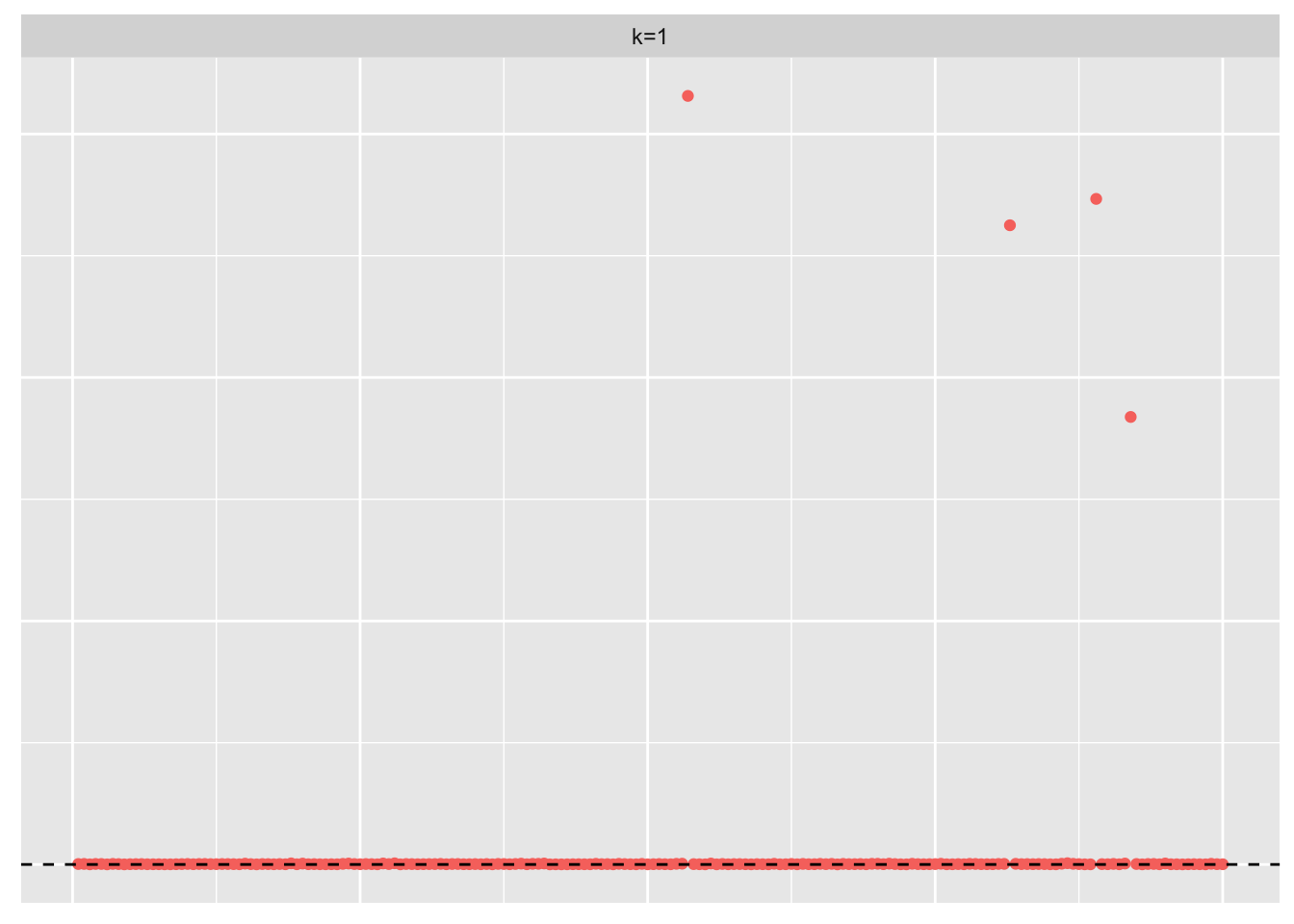

This is a scatter plot of \(\hat{L}\), the estimate from symEBcovMF:

pop_vec <- rep('A', n)
plot_loadings(symebcovmf_fit$L_pm %*% diag(sqrt(symebcovmf_fit$lambda), ncol = length(symebcovmf_fit$lambda)), pop_vec, legendYN = FALSE)

This is the objective function value attained:

symebcovmf_fit$elbo
[1] 22796.37

Visualization of Fit

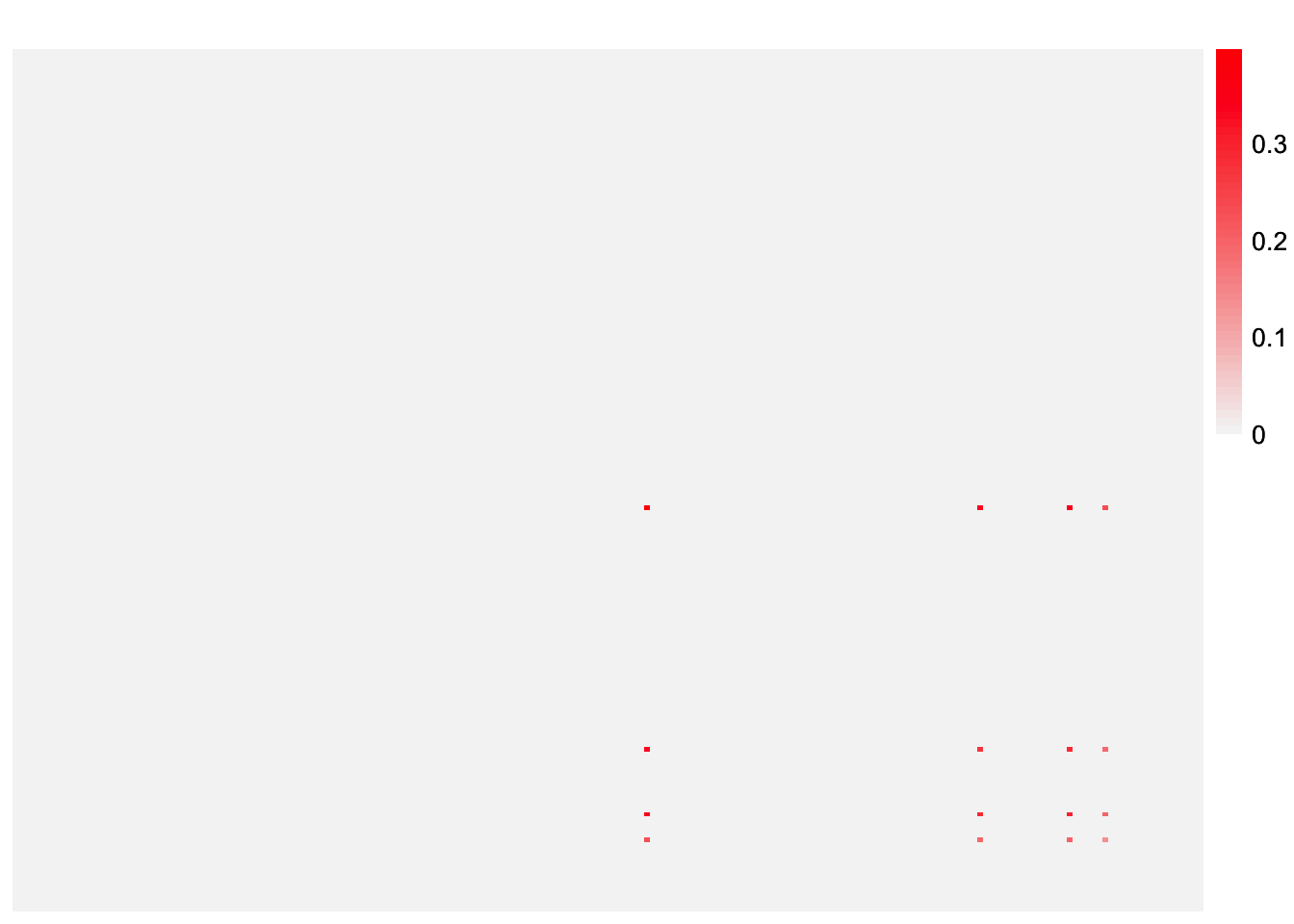

This is a heatmap of \(\hat{L}\hat{\Lambda}\hat{L}'\):

symebcovmf_fitted_vals <- tcrossprod(symebcovmf_fit$L_pm %*% diag(sqrt(symebcovmf_fit$lambda), ncol = length(symebcovmf_fit$lambda)))
plot_heatmap(symebcovmf_fitted_vals, brks = seq(0, max(symebcovmf_fitted_vals), length.out = 50))

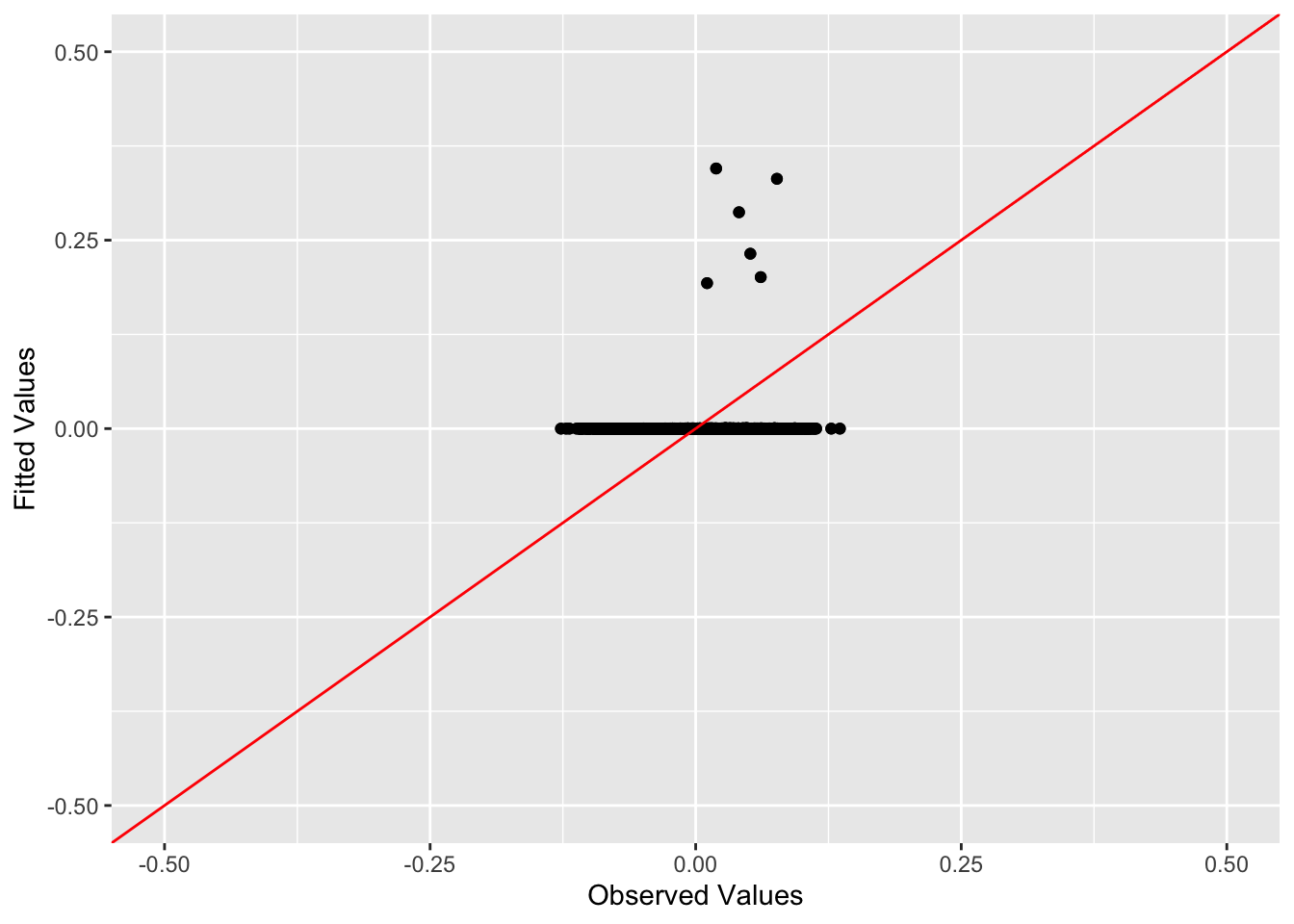

This is a scatter plot of fitted values vs. observed values for the off-diagonal entries:

diag_idx <- seq(1, prod(dim(sim_data$YYt)), length.out = ncol(sim_data$YYt))
off_diag_idx <- setdiff(c(1:prod(dim(sim_data$YYt))), diag_idx)

ggplot(data = NULL, aes(x = c(sim_data$YYt)[off_diag_idx], y = c(symebcovmf_fitted_vals)[off_diag_idx])) + geom_point() + ylim(-0.5, 0.5) + xlim(-0.5,0.5) + xlab('Observed Values') + ylab('Fitted Values') + geom_abline(slope = 1, intercept = 0, color = 'red')

Observations

In this null setting, we would hope that the method would not recover any factors. However, the method does find factors to add. I tested Kmax = 1, 10, 50, 100, and 200, and in all settings, the method utilizes the full factor allowance (i.e. for Kmax = 100, the method adds 100 factors). Flash also has this behavior in the covariance space. Some questions of interest: 1) Why does this happen? Is it because of model misspecification? 2) How can we remedy this? Matthew thought that the estimation of \(\sigma^2\) could help.
